Waterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire Gauge

Brand Name : Cablein

Certification : CE, ROHS, TUV , ETL

Place of Origin : Shenzhen China

MOQ : 100PCS

Price : The price ranges from $1 to $4 USD per pieces

Payment Terms : T/T,Western Union

Supply Ability : Monthly output: 10,000 sets

Delivery Time : 5-8 Working Days

Packaging Details : High Quality export carton

Conductor Material : Copper

Feature : Multi-purpose

Voltage Rating : 450V

Connection Way : Push Lock

Connecting Mode : plug/unplug

Connector Type : Quick connector

Flame Resistance Rating : UL94 V-0

Samples : Paid Samples

Contact Now

Waterproof Connector P20TB02 T-Type 1 Input 2 Output Quick Wiring
Specifications

Connection Type: Quick Connect

Installation Type: Wire-to-Wire

Rating: IP68

Material: PA66

Applicable Wire Gauge: 0.5mm²-2.5mm²

Waterproof Ring: 5-9mm 9-12mm

Pin: 2

Datasheet
Parameter Specification
Product Name Waterproof Connector P20TB02 T-Type 1 Input 2 Output Quick Wiring
Wiring Range 0.5 - 2.5 mm²
Rated Current 1600mA Max
Operating Voltage 0.45KV Max
Ingress Protection (IP) Rating IP67 /IP68
Ambient Temperature -40℃ ~ +105℃
Cable Diameter (OD) 5-9mm 9-12mm
Advantages
  1. Efficient 1-in-2-Out Power Splitter

    Efficiently distributes power from one source to two devices with consistent and reliable connectivity.

  2. IP68 Rated for Water & Dust Protection

    Fully waterproof and dust-tight, ensuring safe operation even in harsh or outdoor environments.

  3. Quick-Wiring Terminal Design

    Enables fast, tool-free wire connections, significantly reducing installation and maintenance time.

  4. T-Type Compact & Robust Structure

    Features a durable and space-saving T-shaped design, ideal for confined spaces and industrial applications.

Product Images

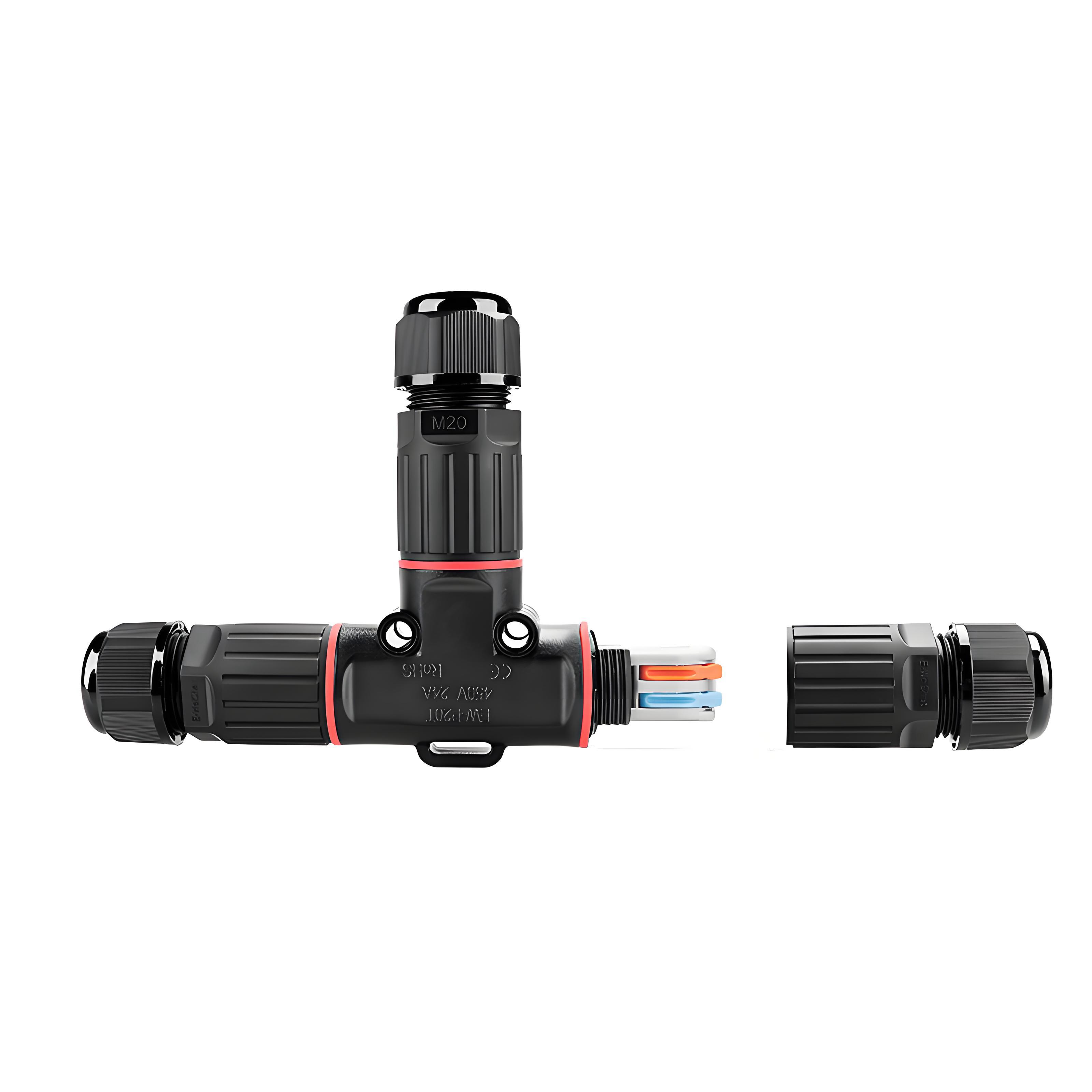

Waterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire GaugeWaterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire GaugeWaterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire GaugeWaterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire Gauge
FAQ
Q1: How do I connect the wires to this connector?

The connector features a quick-wiring terminal block. Simply loosen the terminal screws, insert the stripped wires into the appropriate input and output ports, and tighten the screws. No special tools or crimping is required.

Q2: What is the IP68 rating, and where can I use this connector?

The IP68 rating guarantees complete protection against dust and long-term immersion in water. It is perfectly suited for outdoor, industrial, and automotive applications where exposure to harsh elements is a concern.

Q3: Can I use this connector to split both power and signal?

This T-type connector is primarily designed for power splitting. We recommend checking the product's voltage and current specifications. For signal splitting, please consult our dedicated signal distribution models to ensure optimal performance.
